Description
Metrotile Shingle .410 Lightweight Metal Roof Tile
A versatile profile with the appearance of a small riven slate based on the classic North American timber shingle design, Metrotile Shingle is a simple and elegant solution for any roofing project.
Offering the rooftop quality and style for which Metrotile Lightweight Roofing is renowned, Metrotile Shingle has been designed with a unique “hidden fix” system that also enables the product to double as an excellent vertical cladding solution. This is because the hidden-fix design leaves no nail exposed, preventing rainwater from corroding the nails, a common weakness of traditional vertical cladding.

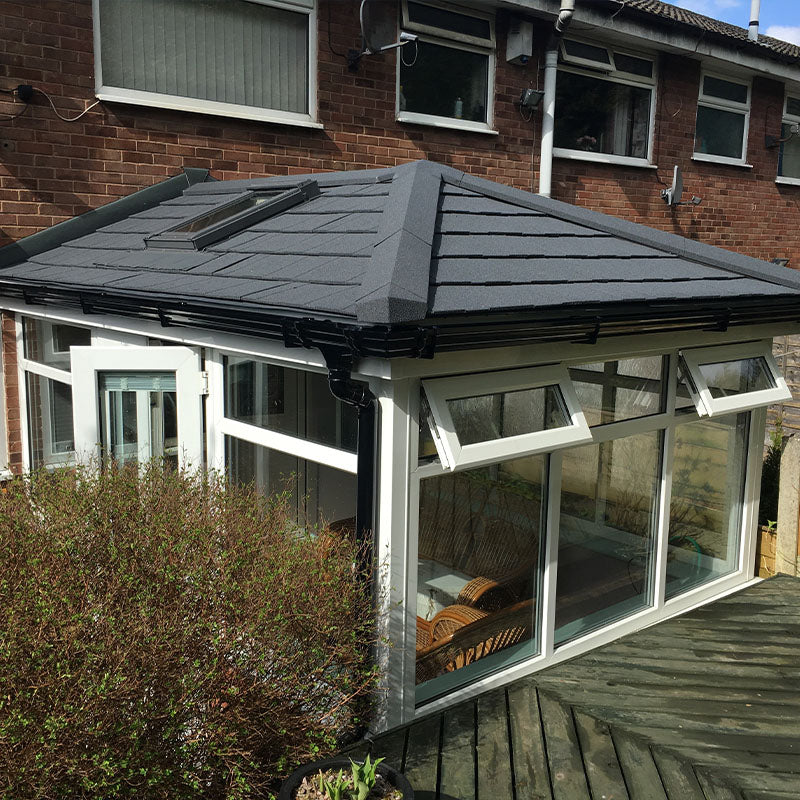

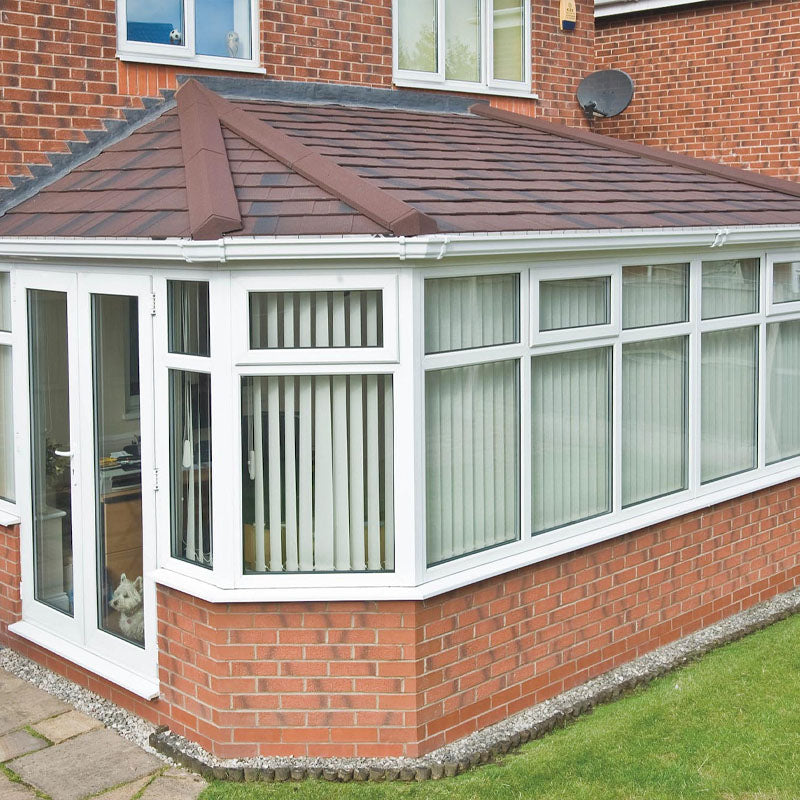

Metrotile Shingle is the perfect lightweight roofing tile solution for a tiled conservatory roof, due to its wide range of colours, BBA certification, 40 Year Guarantee and it's low profile appearance.
Metrotile Shingle is available in a wide range of colours and can be fixed from vertically, down to a minimum pitch of 15°. It is the ideal profile for those looking for a simple and elegant roofing or cladding solution.
Metrotile Shingle is made from lightweight high-grade steel with aluzinc coating for incredible strength and resistance.
Metrotile Shingle has a 40-year weatherproof guarantee.
BBA Certified.
Metrotile Shingle .410 Lightweight Metal Roof Tile - Weight and Dimensions:
- Pitch: Minimum: 15° / Maximum: 90°
- Overall Size: 1335mm x 300mm
- Cover Size: 1255mm x 250mm
- Thickness: 0.410mm
- Linear Cover Width: 1255mm Coverage: 0.46m² / 3.2 Tiles per m²
- Weight per m²: 6.1Kg
- Weight per tile: 1.9Kg
How many Metrotile Shingle Tiles do I need?
- Measure your roof in metres (length × width).
- Calculate the roof area by multiplying the length by the width.
- Multiply the total area by 3.2 (the number of tiles required per square metre).
- Round up to the nearest whole tile if needed.
Example:
If your roof measures 5 metres × 3 metres:
- 5 × 3 = 15 m²
- 15 × 3.2 = 48
- You will need 48 Metrotile Shingle Tiles
Important: This calculation is a guide only and is based on the manufacturer’s stated coverage. It does not allow for cuts or wastage. The roofing industry standard is to allow an additional 5%–10%, depending on roof complexity and installer experience. The final quantity required is the responsibility of the customer or installer.
Metrotile Shingle .410 Lightweight Metal Roof Tile Fixings: 25mm Metrotile Nails
Metrotile Shingle .410 Lightweight Metal Roof Tile - Colours:
- Antique Red

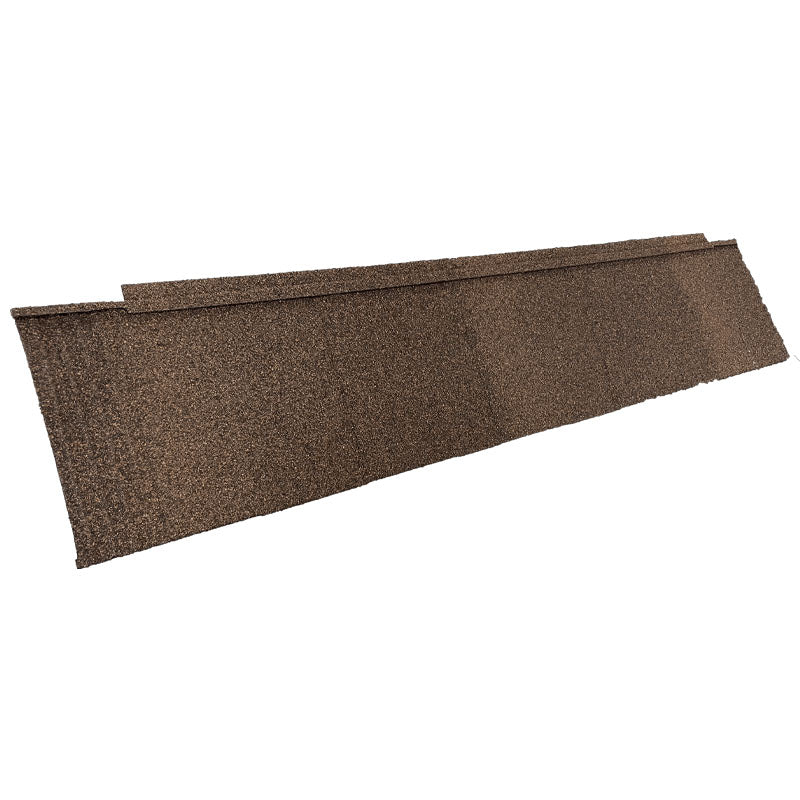

- Bister Brown
- Burnt Umber
- Charcoal

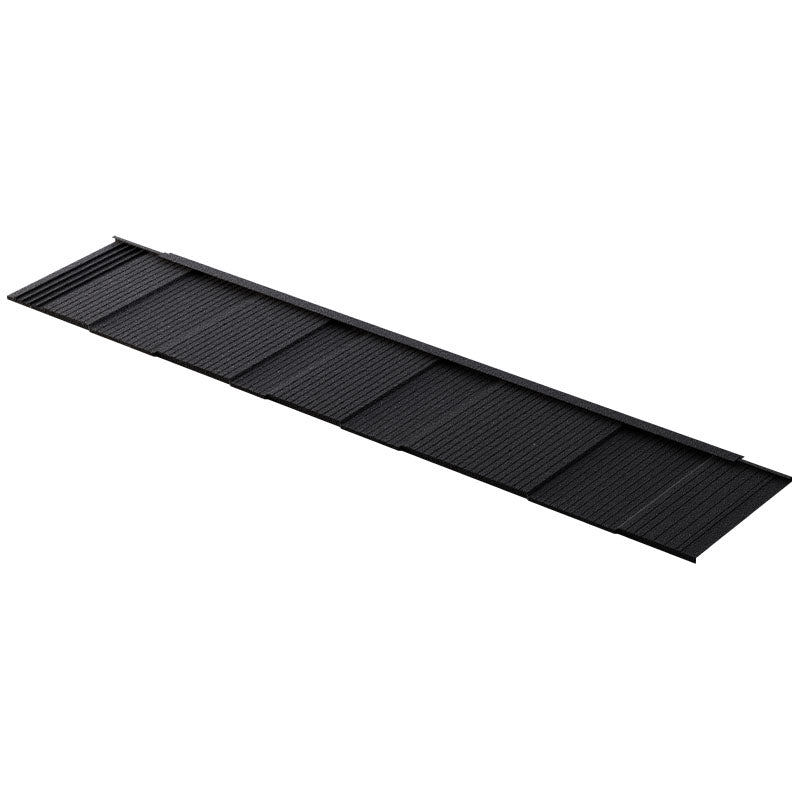

- Coal Black
- Moss Green

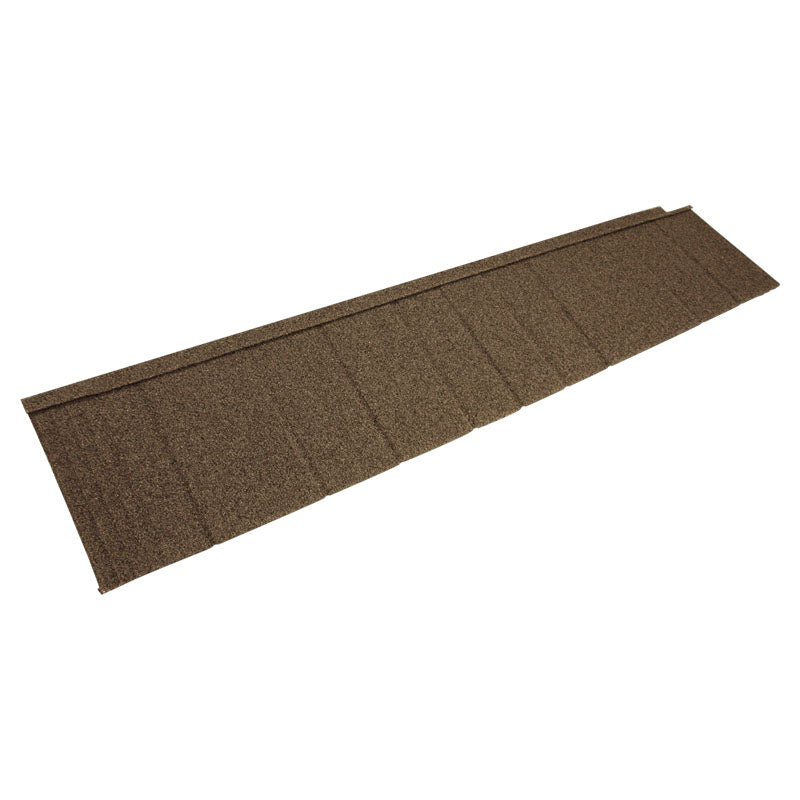

- Iron Bark

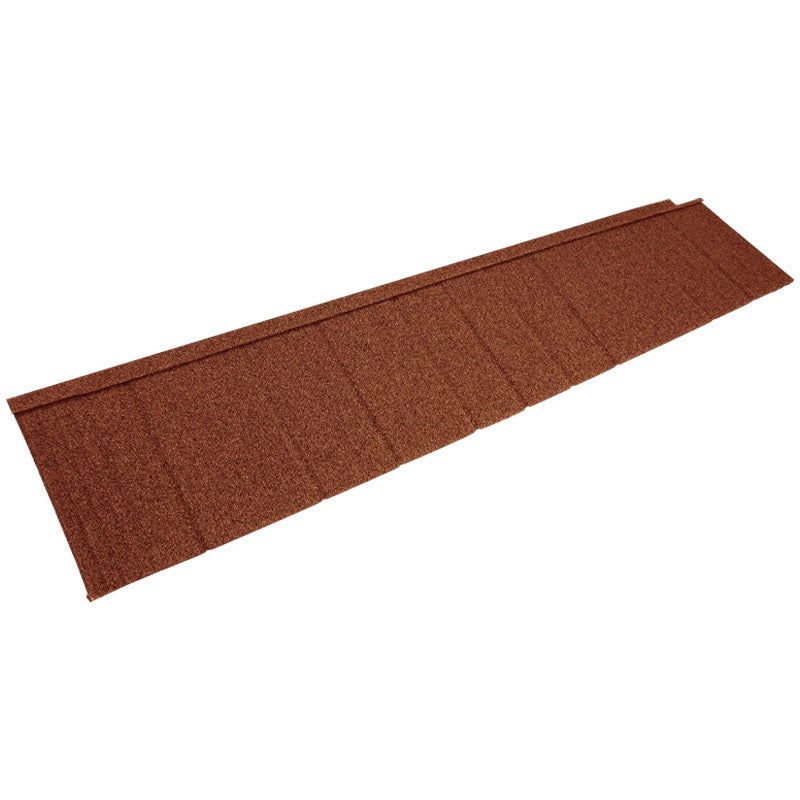

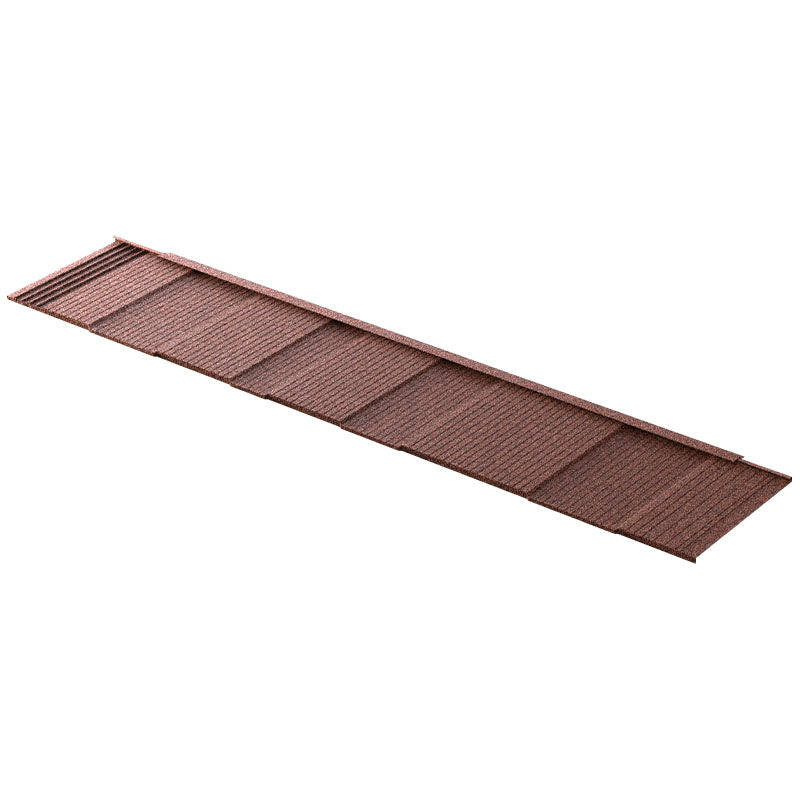

- Scarlet
