Tapco Slate RidgeMaster Plus Vent (Pack of 10)

Tapco Slate RidgeMaster Plus Vent (Pack of 10)

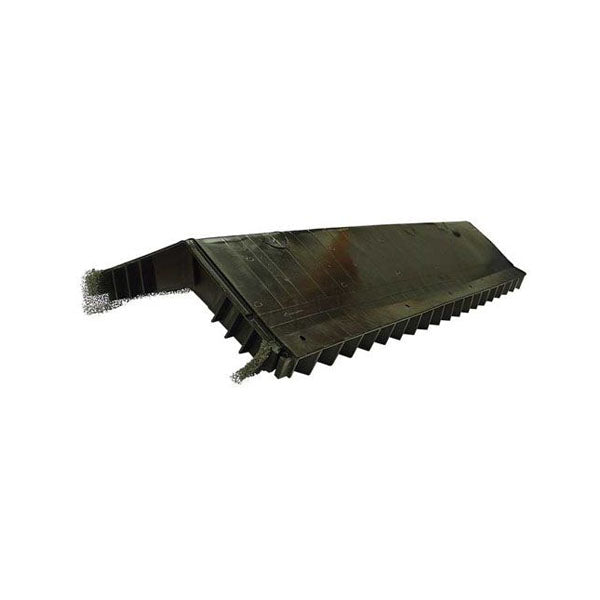

The Ridge Master Plus Vent offers integral ridgeline ventilation, mechanically fixed in conjunction with Tapco ridge and hip tiles.

This product is inserted beneath the ridge.

• Ridge Master Length: 1.22m (4ft)
• Width : 286mm
• Overall Height: 35mm
• Fin Height At edge: 22mm
• Pack Coverage: 12.2m (40ft)

Installation Guide
We recommend RidgeMaster Plus 11" (279mm) to meet your ventilation requirements.

Make sure to follow the steps below when installing TapcoSlate and RidgeMaster Plus.

1. Cut a 1" (25mm) opening in the ridge of the roof, end all cuts 12" (305mm) from outside walls, chimneys, ridge corners or hip joints.
2. Install slates up to the opening.
3. Fold felt over the last course of slates or install a metal J channel to prevent the infiltration of fine powder snow between keyways.
4. Install RidgeMaster Plus using 3" (76mm) roofing nails.
   RidgeMaster Plus should be installed 12" (305mm) beyond the slot opening.
   For the best appearance, install the Ridge Master Plus Vent along the entire length of the ridge.
5. Install TapcoSlate Ridge Cap pieces over the Ridge Master Plus vent, nailing in the designated RidgeMaster Plus nail target area.
   Use 3" (76mm) long Stainless Steel nails.
6. Ridge Master Plus Vent has an overlap and an underlap end that interlock when laid end to end in proper orientation.
   This unites the 4-foot (1.22m) sections into a single structural integrated, weather-tight system.
   Always install RidgeMaster Plus with the overlap end on the outside terminal end of the ridge.
   You should also complete your ridge vent with a factory end on the opposite terminal end of the ridge.
   RidgeMaster Plus will provide 12.228 square inches (7889mm²) of NFVA per linear foot.

Note

This product is only available in the slate grey (703) colour but is not visible once the ridge is installed.

*Ridges are NOT included with this product and need to be purchased seperately.
